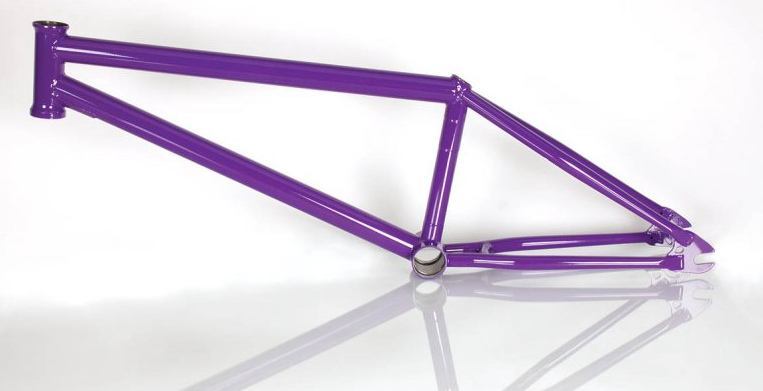

Skavenger 'Bridge' Frame

Skavenger's Bridge frame is Edwin Delarosa's signature frame featuring a toptube and downtube made from double-butted heat-treated Mugen tubing that is 20% stronger than 4130 chromoly. The toptube has an internal gusset and the downtube has an internal and external gusset for added strength. The rest of the frame is made from heat-treated 4130 chromoly and features an integrated headtube with Pigeon headtube badge, externally machined Mid BB shell, externally butted clampless seat tube, tapered seat and chainstays, seatstay located removable U-brake mounts, widened rear end for fatter tires, Bridge seatstay brace and 5mm thick dropouts. Includes Animal Pivotal Wedge post.
Headset Type: Integrated (Campy Spec)
Gyro Tabs: N/A
Brake Mounts: Removable (Included)
BB Type: Mid
BB Height: 11.75"
Chainstay: 13.5" - 14"
Headtube Angle: 75°
Seattube Angle: 71°
Seattube Height: 8.875" (225mm)
Seatpost Size: 25.4mm (Animal Wedge Post Included)
Seat Clamp: N/A - must use and internal clamping seat post
Dropout Size: 14mm
Weight: 4 lbs 7 oz
